Inventory Building CLI

Inventory Building CLI

CLI (Command Line Interface) for Inventory Building

Execute ETL Projects

  1. SET INVNAME=MyInv
  2. :: Set CM evolveIT installed root Folder Path
  3. SET EVIT_ROOT=C:\CMFirst\evolveIT-11.7
  4. :: Set Workarea root Folder Path
  5. SET WAPATH=C:\CMEvolveIT\Workareas
  6. :: Set Inventory root Folder Path
  7. SET INVPATH=D:\CMEvolveIT\Inventories
  8. :: SET user and password to connect Server Service
  9. SET USER=Administrator
  10. SET PASSWORD=cmfirst
  11. :: Set Server service host and port
  12. SET EVITSVC=evolveIT-11.7
  13. SET SERVER=localhost
  14. SET PORT=65491
  15. :: Set mode (MF or IBMI)
  16. SET MODE=MF

  18. :: Please add your own source file copy process here.. such xcopy, ftp, unzip etc.

  20. ::Start CM evolveIT service
  21. SC start %EVITSVC%

  23. :: Refresh DB2 catalog
  24. cd /d %EVIT_ROOT%\WebData\ETLProject
  25. evolveITSrcFileManagementCLI.exe -m FULL -w "5a96992c-019a-4535-8ec4-59112b548dd8" -p "1d1081c7-bc6b-40d0-a8a9-e7aed0129c24"
  26. pause

  28. ::Stop CM evolveIT service
  29. SC stop %EVITSVC%

  31. TIMEOUT /T 10 >nul

  33. ::Start CM evolveIT service
  34. SC start %EVITSVC%
  35. pause

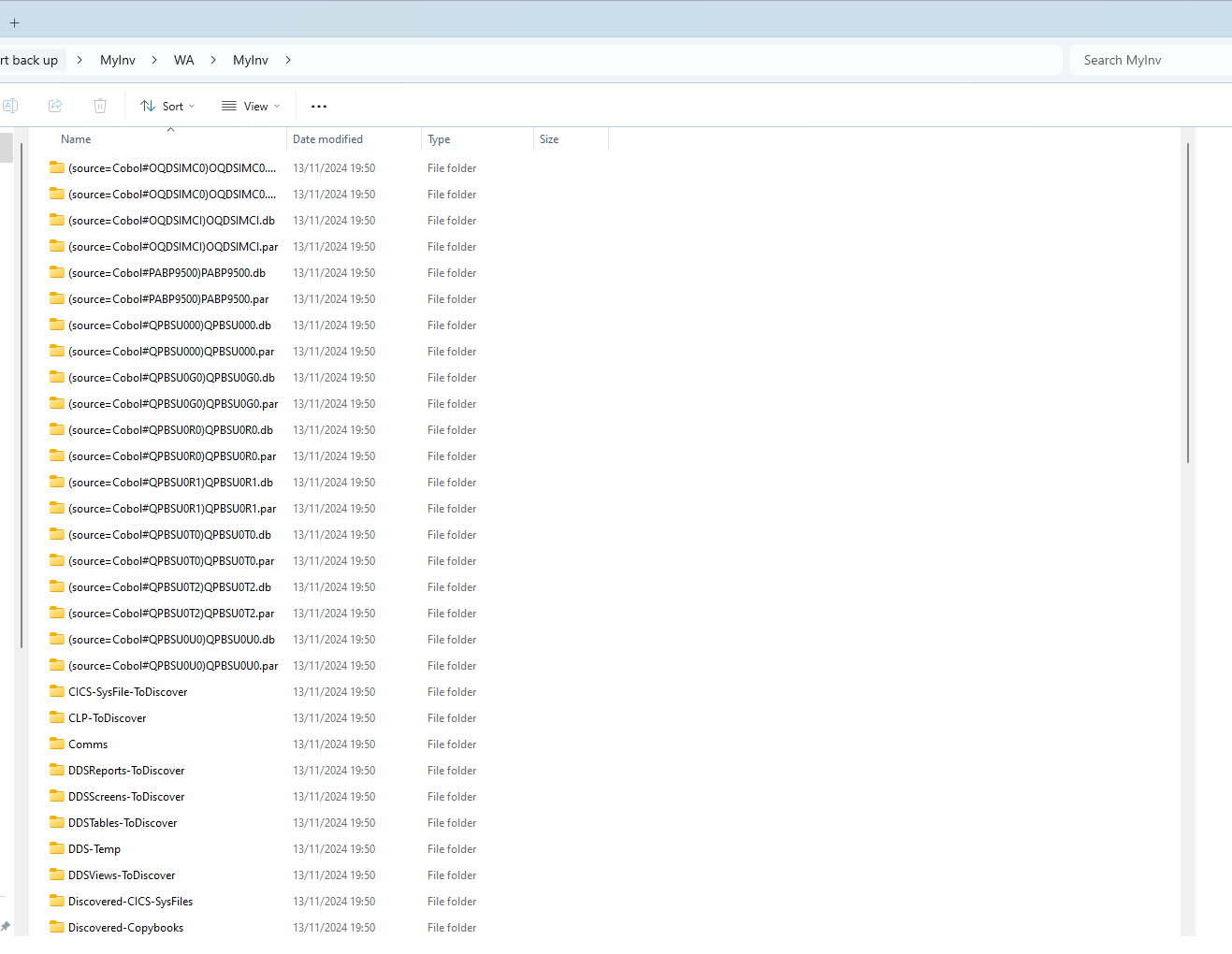

Discovery your source

  1. SET INVNAME=MyInv
  2. :: Set CM evolveIT installed root Folder Path
  3. SET EVIT_ROOT=C:\CMFirst\evolveIT-11.7
  4. :: Set Workarea root Folder Path
  5. SET WAPATH=C:\CMEvolveIT\Workareas
  6. :: Set Inventory root Folder Path
  7. SET INVPATH=D:\CMEvolveIT\Inventories
  8. :: SET user and password to connect Server Service
  9. SET USER=Administrator
  10. SET PASSWORD=cmfirst
  11. :: Set Server service host and port
  12. SET EVITSVC=evolveIT-11.7
  13. SET SERVER=localhost
  14. SET PORT=65491
  15. :: Set mode (MF or IBMI)
  16. SET MODE=MF

  18. :: Please add your own source file copy process here.. such xcopy, ftp, unzip etc.

  20. ::Start CM evolveIT service
  21. SC start %EVITSVC%

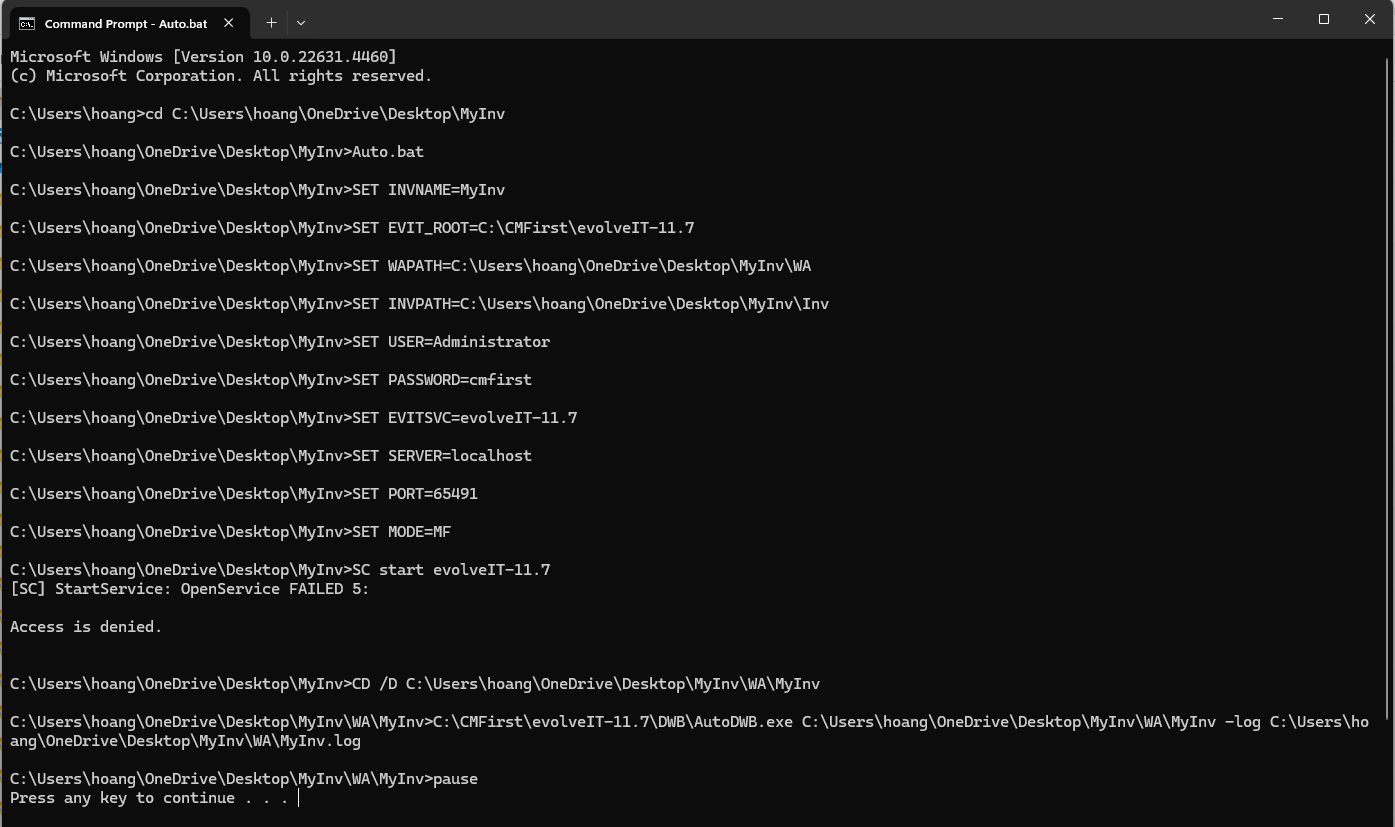

  23. :: Run Discovery
  24. CD /D %WAPATH%\%INVNAME%
  25. %EVIT_ROOT%\DWB\AutoDWB.exe %WAPATH%\%INVNAME% -log %WAPATH%\%INVNAME%.log
  26. pause

  28. ::Stop CM evolveIT service
  29. SC stop %EVITSVC%

  31. TIMEOUT /T 10 >nul

  33. ::Start CM evolveIT service
  34. SC start %EVITSVC%
  35. pause

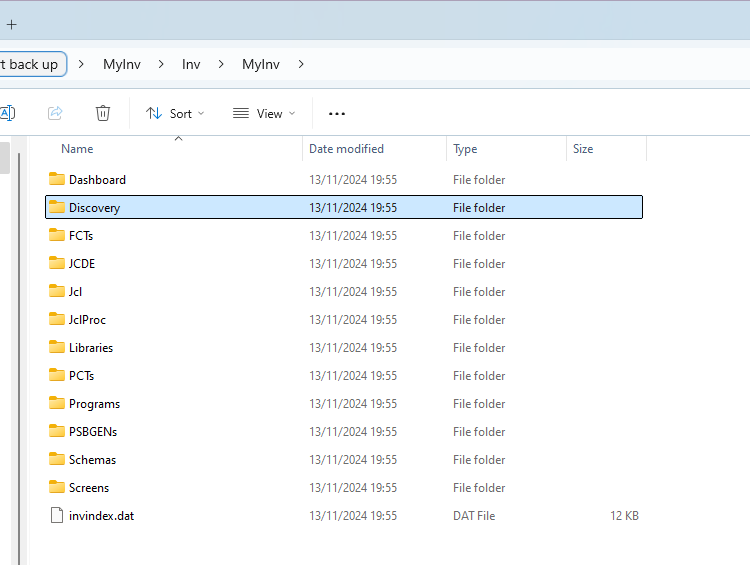

Import Workarea to Inventory

  1. SET INVNAME=MyInv
  2. :: Set CM evolveIT installed root Folder Path
  3. SET EVIT_ROOT=C:\CMFirst\evolveIT-11.7
  4. :: Set Workarea root Folder Path
  5. SET WAPATH=C:\CMEvolveIT\Workareas
  6. :: Set Inventory root Folder Path
  7. SET INVPATH=D:\CMEvolveIT\Inventories
  8. :: SET user and password to connect Server Service
  9. SET USER=Administrator
  10. SET PASSWORD=cmfirst
  11. :: Set Server service host and port
  12. SET EVITSVC=evolveIT-11.7
  13. SET SERVER=localhost
  14. SET PORT=65491
  15. :: Set mode (MF or IBMI)
  16. SET MODE=MF

  18. :: Please add your own source file copy process here.. such xcopy, ftp, unzip etc.

  20. ::Start CM evolveIT service
  21. SC start %EVITSVC%

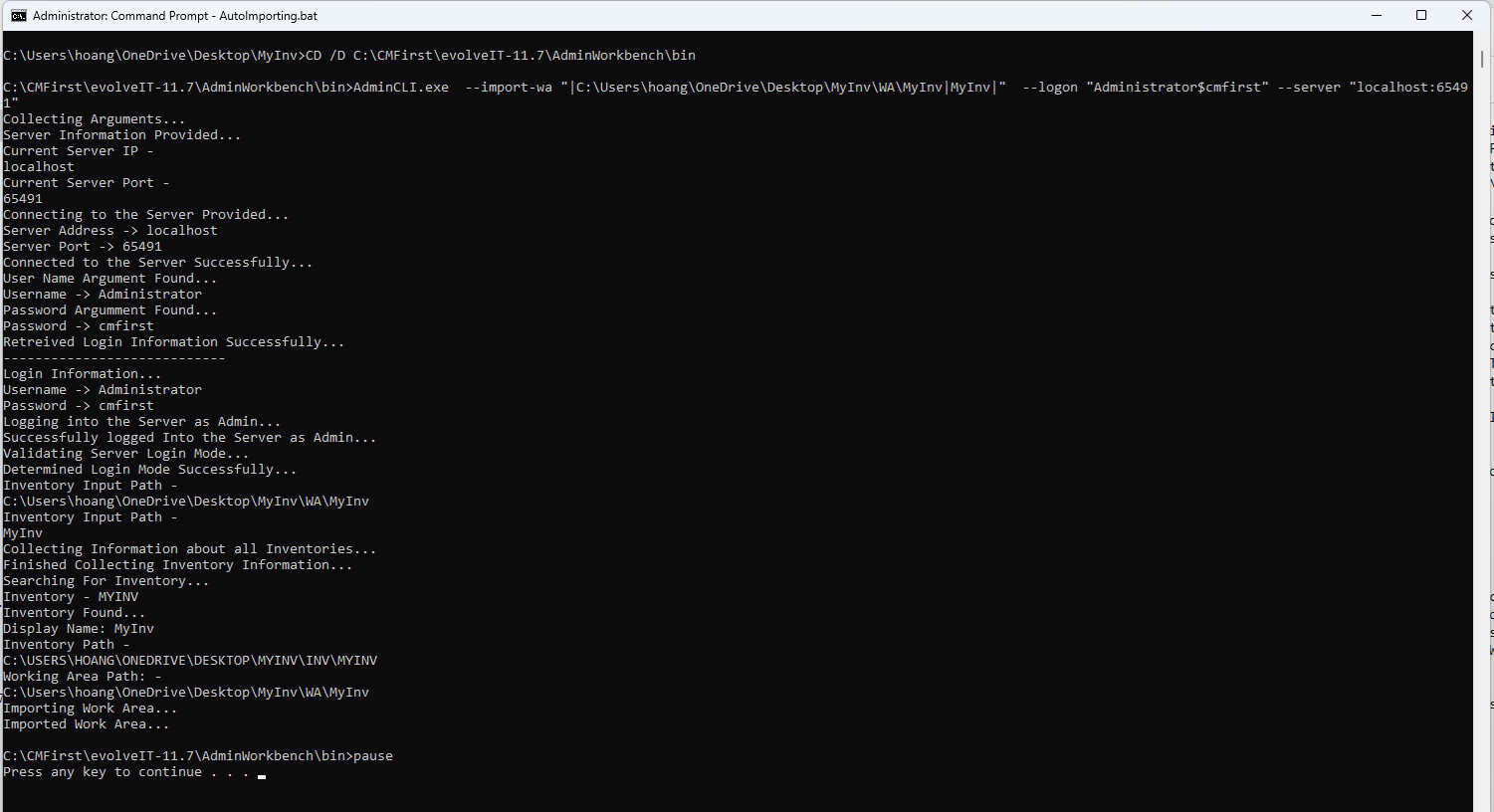

  23. ::Run Import
  24. CD /D %EVIT_ROOT%\AdminWorkbench\bin
  25. AdminCLI.exe  --import-wa "|%WAPATH%\%INVNAME%|%INVNAME%|"  --logon "%USER%$%PASSWORD%" --server "%SERVER%:%PORT%"
  26. pause

  28. ::Stop CM evolveIT service
  29. SC stop %EVITSVC%

  31. TIMEOUT /T 10 >nul

  33. ::Start CM evolveIT service
  34. SC start %EVITSVC%
  35. pause

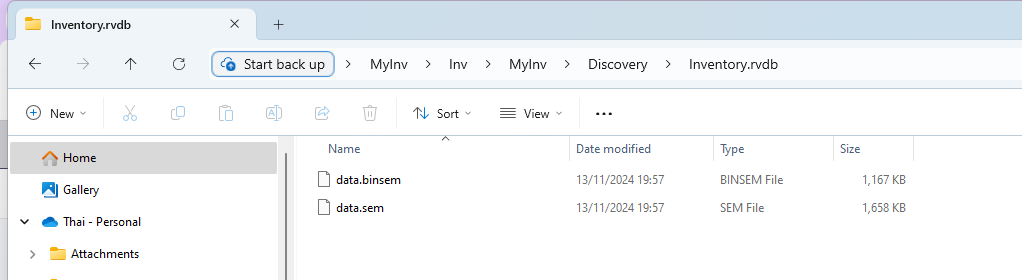

Cross Reference Desktop Inventory

  1. SET INVNAME=MyInv
  2. :: Set CM evolveIT installed root Folder Path
  3. SET EVIT_ROOT=C:\CMFirst\evolveIT-11.7
  4. :: Set Workarea root Folder Path
  5. SET WAPATH=C:\CMEvolveIT\Workareas
  6. :: Set Inventory root Folder Path
  7. SET INVPATH=D:\CMEvolveIT\Inventories
  8. :: SET user and password to connect Server Service
  9. SET USER=Administrator
  10. SET PASSWORD=cmfirst
  11. :: Set Server service host and port
  12. SET EVITSVC=evolveIT-11.7
  13. SET SERVER=localhost
  14. SET PORT=65491
  15. :: Set mode (MF or IBMI)
  16. SET MODE=MF

  18. :: Please add your own source file copy process here.. such xcopy, ftp, unzip etc.

  20. ::Start CM evolveIT service
  21. SC start %EVITSVC%

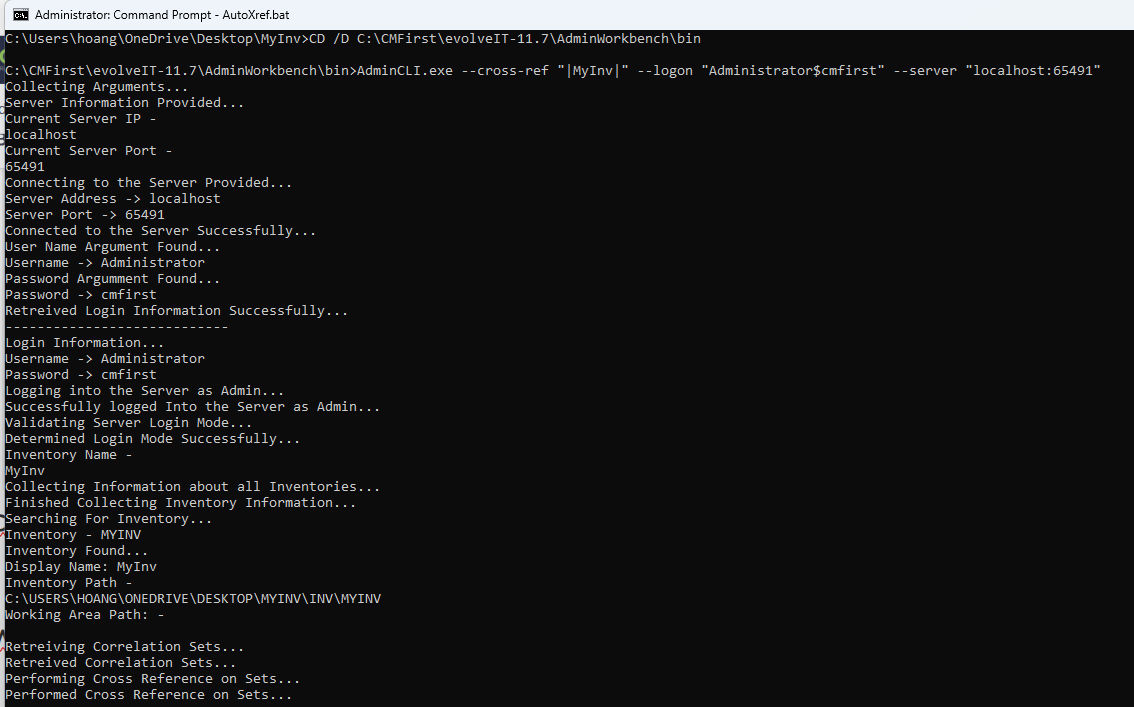

  23. ::Run Cross-Reference of full Inventory
  24. CD /D %EVIT_ROOT%\AdminWorkbench\bin
  25. AdminCLI.exe --cross-ref "|%INVNAME%|" --logon "%USER%$%PASSWORD%" --server "%SERVER%:%PORT%"

  27. ::Stop CM evolveIT service
  28. SC stop %EVITSVC%

  30. TIMEOUT /T 10 >nul

  32. ::Start CM evolveIT service
  33. SC start %EVITSVC%
  34. pause

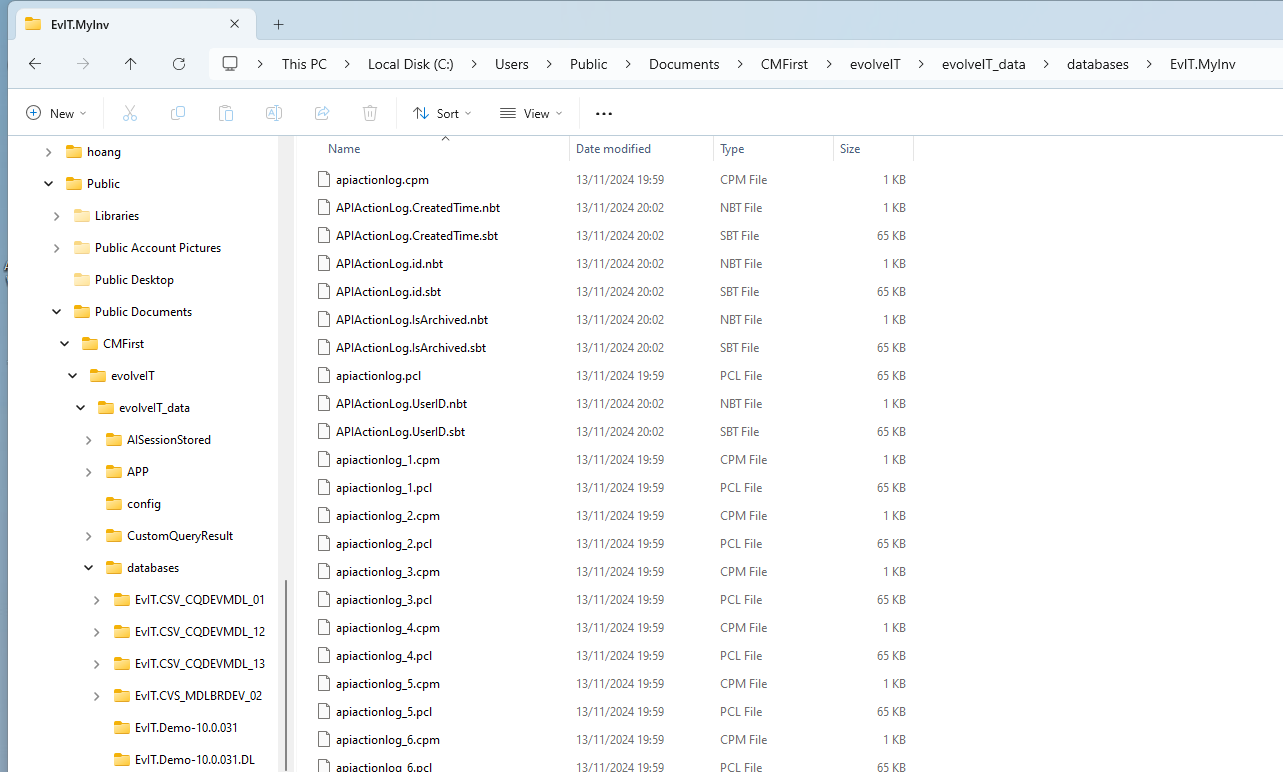

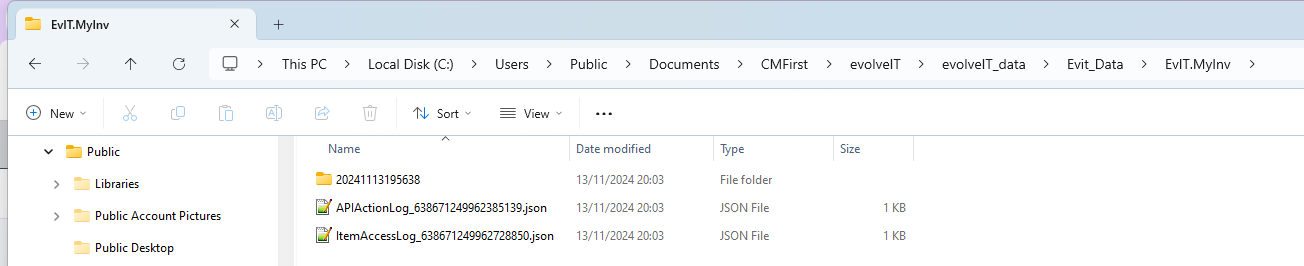

Web Inventory ETL

  1. SET INVNAME=MyInv
  2. :: Set CM evolveIT installed root Folder Path
  3. SET EVIT_ROOT=C:\CMFirst\evolveIT-11.7
  4. :: Set Workarea root Folder Path
  5. SET WAPATH=C:\CMEvolveIT\Workareas
  6. :: Set Inventory root Folder Path
  7. SET INVPATH=D:\CMEvolveIT\Inventories
  8. :: SET user and password to connect Server Service
  9. SET USER=Administrator
  10. SET PASSWORD=cmfirst
  11. :: Set Server service host and port
  12. SET EVITSVC=evolveIT-11.7
  13. SET SERVER=localhost
  14. SET PORT=65491
  15. :: Set mode (MF or IBMI)
  16. SET MODE=MF

  18. :: Please add your own source file copy process here.. such xcopy, ftp, unzip etc.

  20. ::Start CM evolveIT service
  21. SC start %EVITSVC%

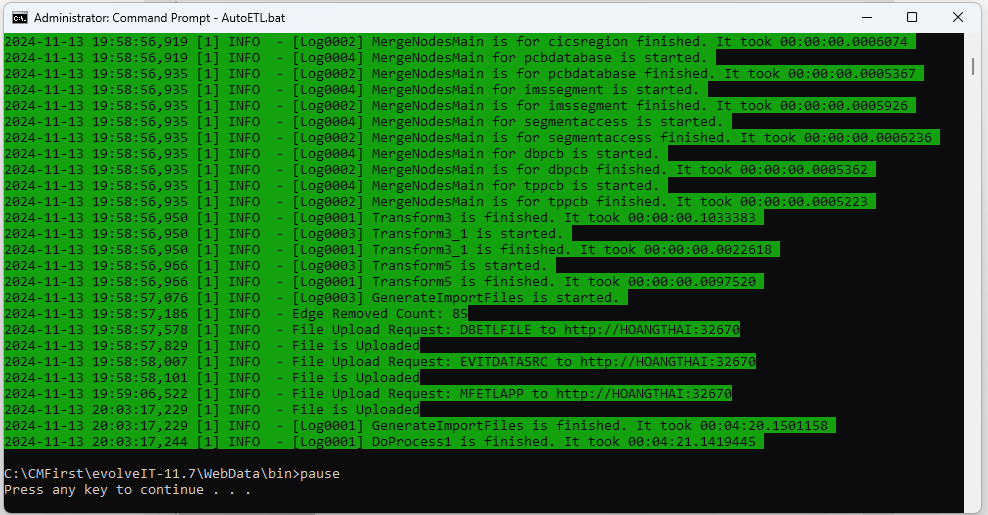

  23. :: Run Web ETL
  24. cd /D %EVIT_ROOT%\WebData\bin
  25. EvITInventoryTransformUtil.exe -m "%INVPATH%\%INVNAME%" -i %INVNAME% -p %MODE% -e ET
  26. pause

  28. ::Stop CM evolveIT service
  29. SC stop %EVITSVC%

  31. TIMEOUT /T 10 >nul

  33. ::Start CM evolveIT service
  34. SC start %EVITSVC%
  35. pause
