CM evolveIT Source Code Search

CM evolveIT Source Code Search

CM EvolveIT Document Search Feature allows users to search for documents (Action Diagram) with text.
This document covers how to use CM EvolveIT Document Search

Source Code Search

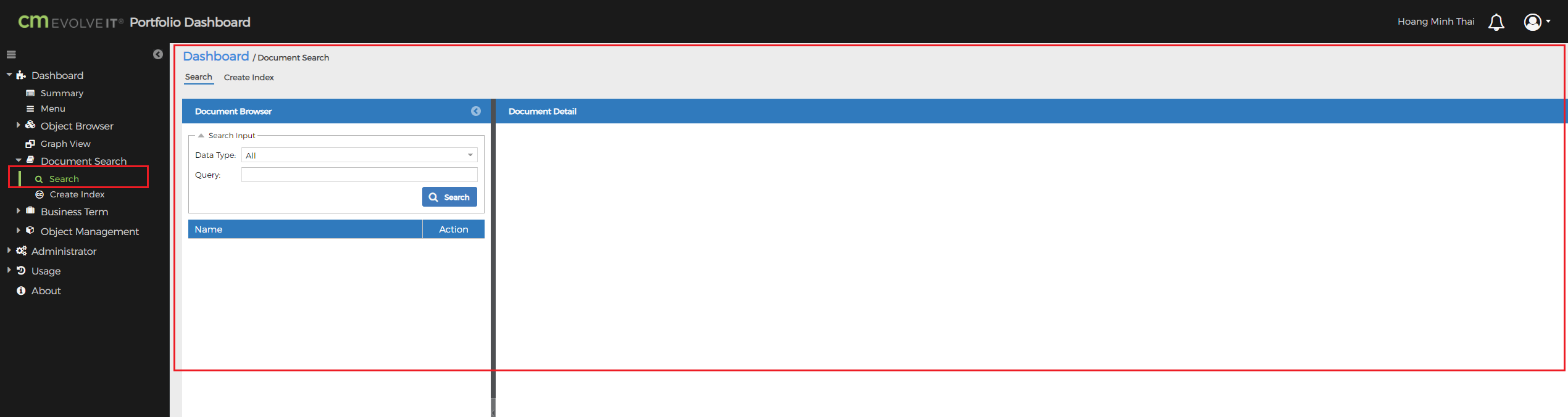

1. How to open Document Search UI:

Select Dashboard->Document Search->Search

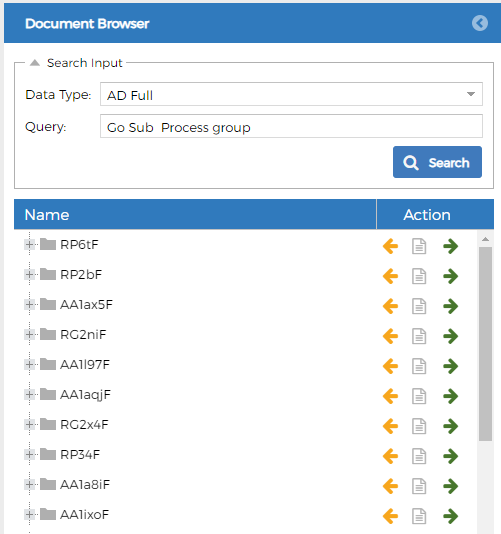

2. Document Search UI:

Select Data Type and type Text to Search Documents

      2.1. Search Input:

  1. Document Type that we want to search (All, AD Full, AD Local)
    1. All: Both Action Diagram Full and Local
    2. AD Full: Search in Action Diagram Full text
    3. AD Local: Search in Action Diagram Local text
 Tips
Action Diagram Local contains AD statements added to the function. It doesn't include any inherited Action Diagram Statements



  1. Query



Tips:
We applied the "match phrase query" to search for documents.
The match_phrase query analyzes the text and creates a phrase query out of the analyzed text.
A phrase query matches terms up to a configurable slop (which defaults to 0) in any order. Transposed terms have a slop of 2.

Example: Document content: "This is a test file."
- If the query is "This" or " This is" => Return result
If the query is "hi" or "This test" => Not return result

      2.2. Search Result:

  1. The search result appears as a list owner of Function Object



  1. Document Line Detail: Each result item has a tree view and shows the line in the document that match the query


       2.3. Actions on the result:

  1. View Forward, Backward information of function with Object Browser


  1. View Document Content: Open the searched document

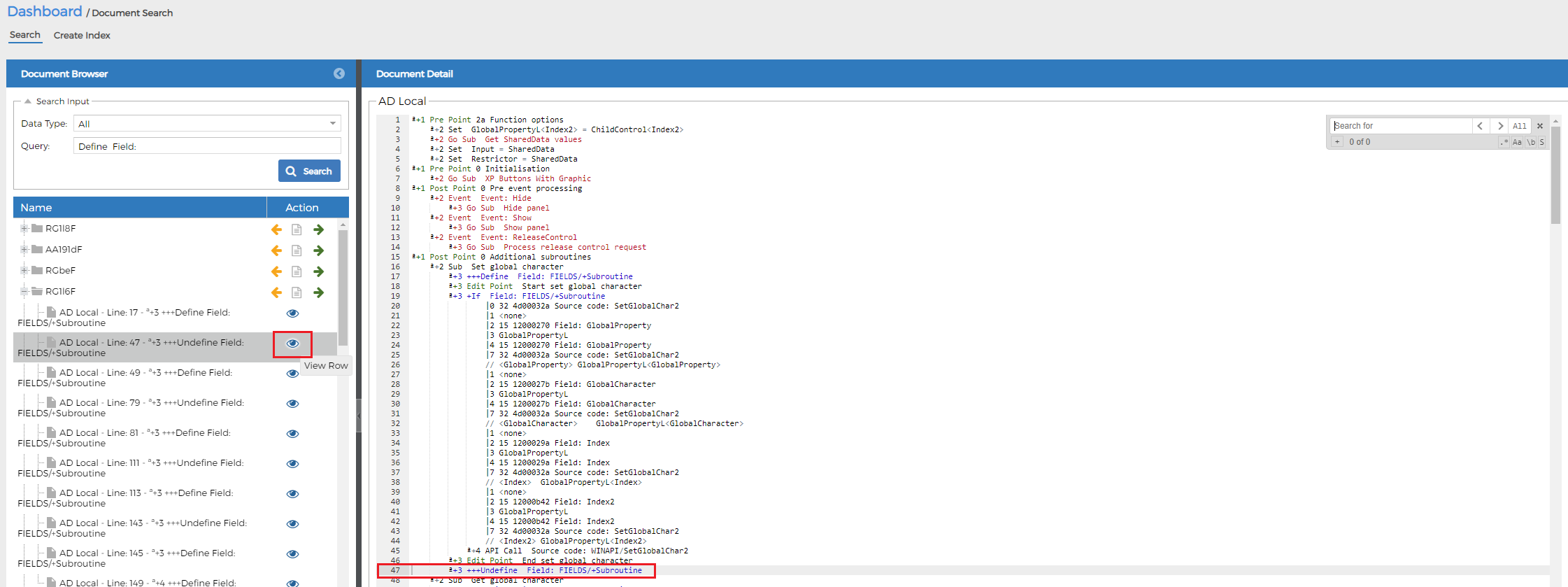

  1. View Document Content base on Document Line: Open the searched Document with focus on the Line


Create an Index for documents (Administrator Only)

To start searching the document, we need to create an index for documents of Inventory. We just do it only one time. If we have any updates about documents, we need to run create Index for documents again to make sure that documents have been updated.

1. How to open Create Index UI:

Select Dashboard->Document Search->Create Index



2. Submit "Create Index" request

Click on "Create Index" button and click Yes


3. Track "Create Index" request

After submitting the request, we will get a new information pop-up as below:


A new record will be added to the grid. (Document Count: 0 and Status: In Progress)


If the request is completed, a new record will be updated values into Document Count: Number of Documents that have been created   Index and Status is Finished (You can click on the Refresh button to check result)


4. Create Index Historical Grid:

To show "Create Index Historical" data. Besides that, we can have some actions in this grid as below:
  1. Sorting data: When clicking on the column header:


  1. Filter data:: When clicking on the column header:
