Deployment Configurations (Runtime)

Deployment Configurations (Runtime)

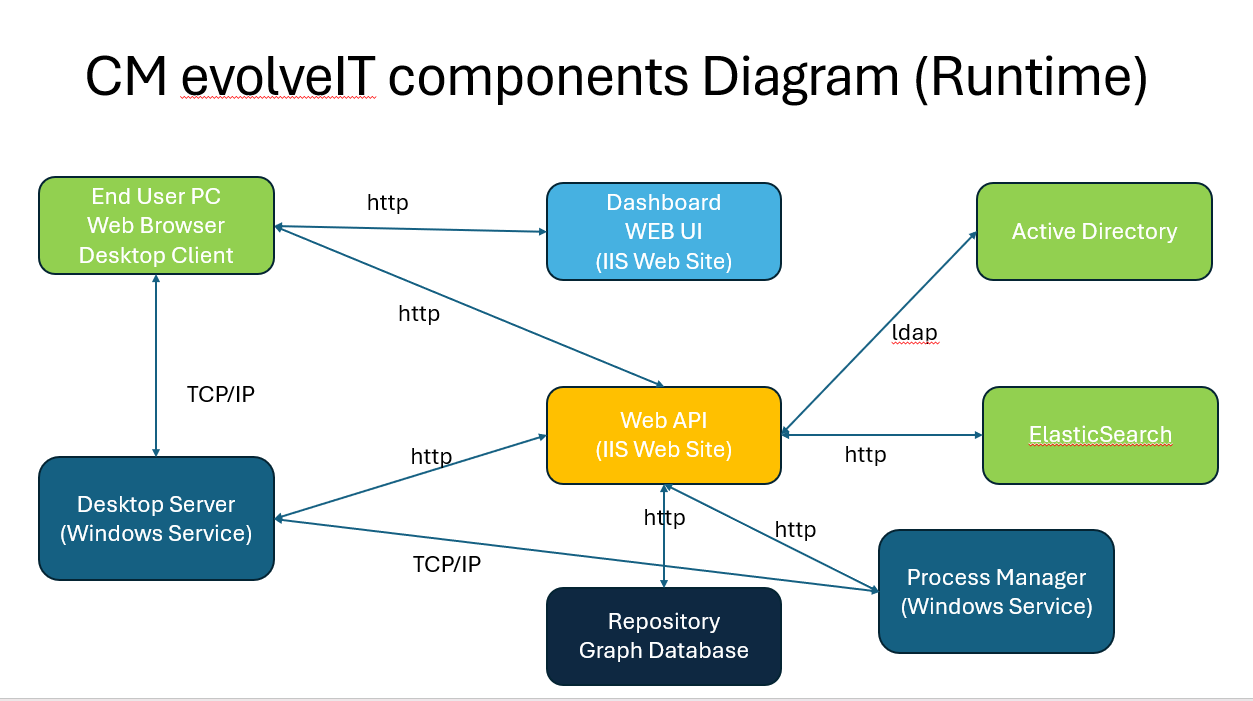

Configuration settings between Components

CM evolveIT installation and configuration process set up all required components automatically but all in one in single server.

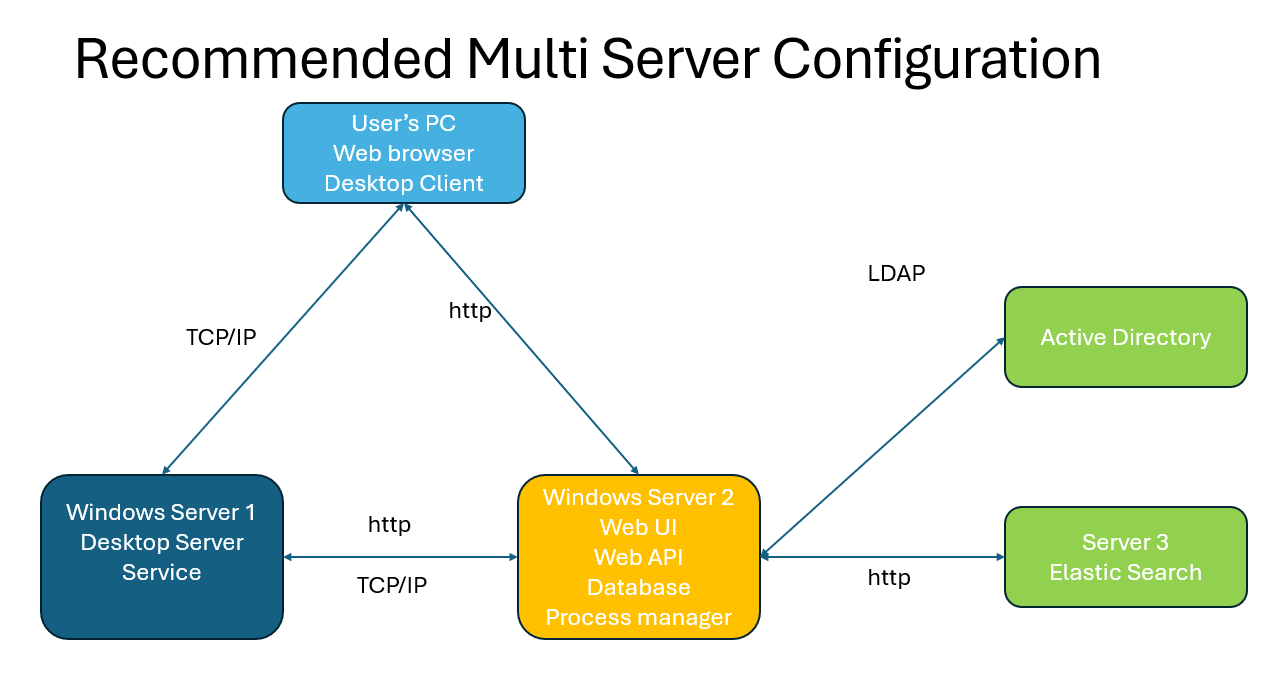

From scalability and performance reasons, multi-Server Deployment is recommended.
This documents helps which files needed adjusted to point target components.
Notes
EvolveITRoot is installation root folder, such as C:\CMFirst\evolveIT-{version}

End User Web Browser -> Dashboard Web UI

Purpose: To Open Web UI from the browser
  1. URL on Browser which set at Dashboard Web UI Web Site Binding on IIS

Desktop Client -> Desktop Server Service

Purpose: To Open and load Desktop Inventory on Desktop Client
  1. Desktop Client UI

Desktop Server Service -> Web API

Purpose: To redirect user authentication. If Web API is configured with Active Directory authentication Mode, it is used.
  1. {EvolveITRoot}\Server\bin\Config\EvITAPIOptions.json


Dashboard Web UI -> Web API

Purpose: Web page to invoke Web API
  1. {EvolveITRoot}\WebData\DeployPackages\Dashboard\configuration\urlSetting.js
    1. var apiURL = 'http://localhost:32670/api';


Web API -> Repository Database

Warning
We strongly recommend Web API and Database on the same Server.

Purpose: Web API to access database
  1. Master database: {EvolveITRoot}\WebData\DeployPackages\EvITWebAPI\ConfigApp\appSettings.config

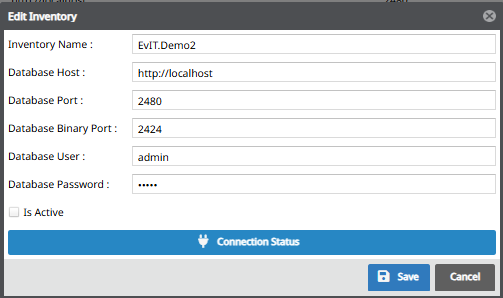

  2.  Inventory database: From Web UI


WebAPI -> ElasticSearch

Purpose: Web API to access ElasticSerch
  1. {EvolveITRoot}\WebData\DeployPackages\EvITWebAPI\bin\ConfigApp\appSettings.config
    1. <add key="ElasticSearchUrl" value="http://localhost:9200" />

Process Manager -> Web API

Purpose: Process manager invokes Web API. Used for Custom Query and Data Lineage process
  1. {EvolveITRoot}\WebData\ProcessManager\ConfigApp\EvITProcessManagerConfig.json
    1.   "EvITWebAPIURL": "http://localhost:32670",

Process Manager -> Desktop Server Service

Purpose: Process manager invokes Data Lineage Service
  1. {EvolveITRoot}\WebData\ProcessManager\ConfigApp\EvITProcessManagerConfig.json
    1.   "EvITServiceHostName": "localhost",
    2.   "EvITServicePort": 65491,

Web API -> Active Directory

Purpose: To use Active Directory to authenticate User
  1. From Web UI
