CM EvolveIT allows users to edit the application Menu.

This feature is useful to define the application Menu structure.
  1. Menu is implemented outside of the Plex Model.
  2. Menu is dynamic such as data-driven.
  3. Main Menu Function exists but Call graph shows many non-UI function calls.
Menu can be imported by bulk import, See also ImportMenu

This document covers the basics of the CM EvolveIT Menu Editing. There will be a discussion of how we use the Object Filter functionality to .

After completing this document, you should have a basic understanding of the CM EvolveIT Menu Editing.

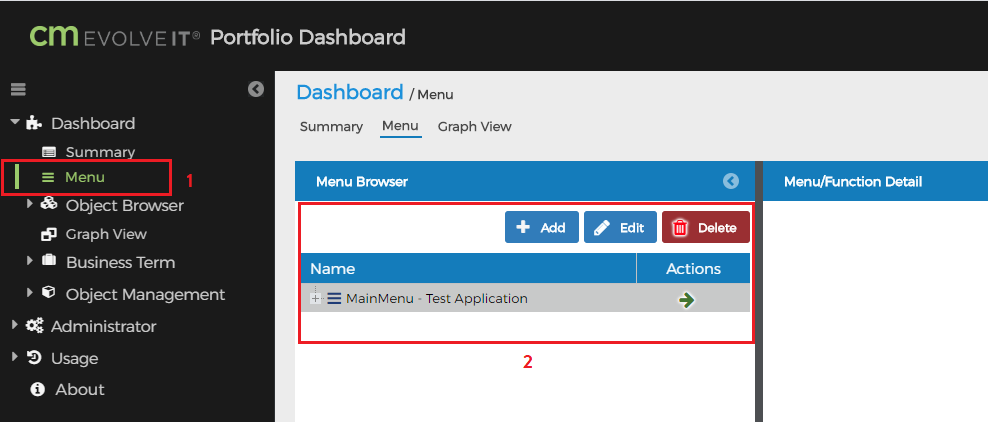

How to open Menu Editor:

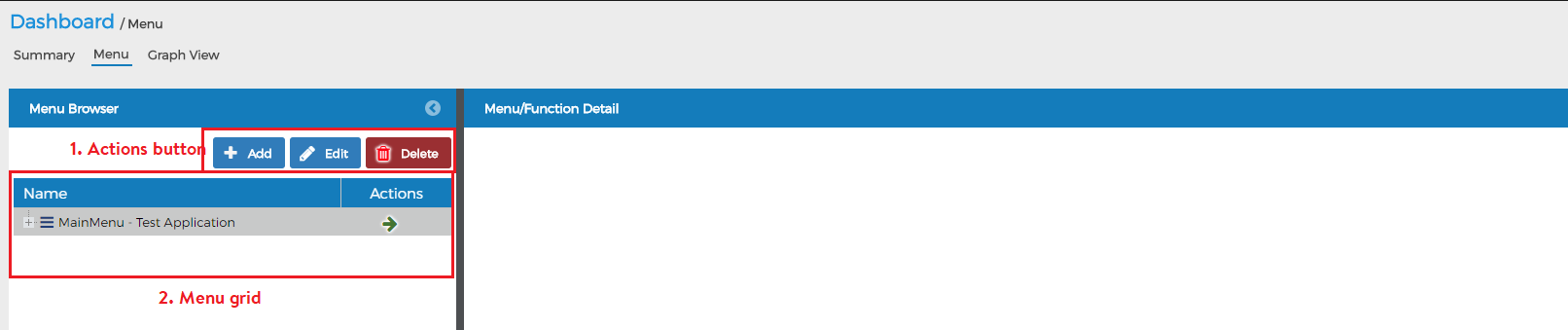

Menu Editor UI:

Menu Editor UI Detail:

1. Action buttons:

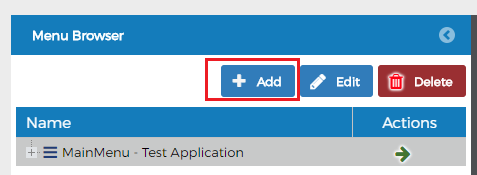

      1.1. New Menu:

      To add a new Menu.

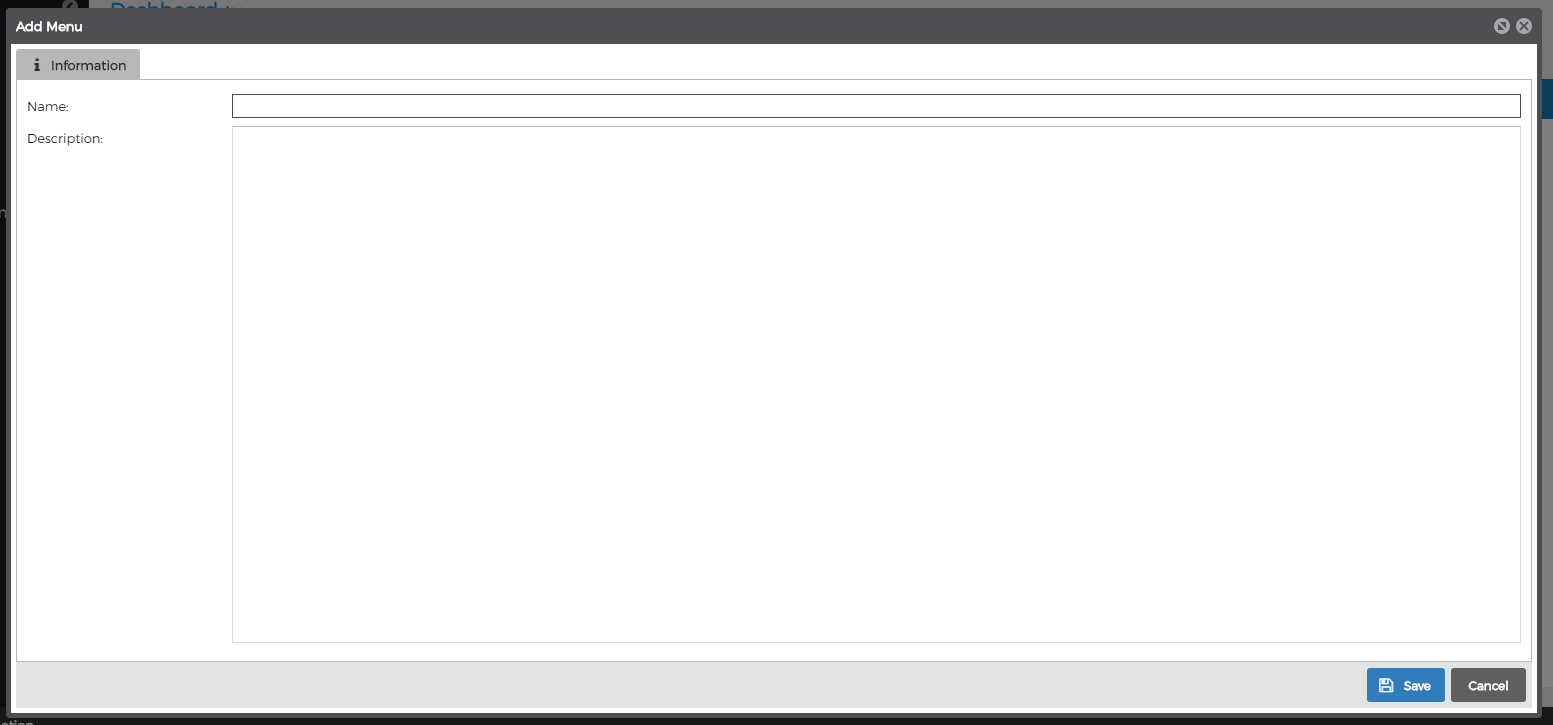

  1. Click on Add button to open the pop-up
  1. Fill data and click save button

       1.2. Edit Menu:

      To edit the menu, assign items into the menu.
  1. Click on a row on the grid to select the menu that you want to edit and click the edit button to open a pop-up.
  1. Edit pop-up:
            + Information tab: To edit menu information:
            + Assing Menu tab: To add menus as children of working item:
                  - Left gird: UnAssigned Menu: We can click on search to search menu.
                  - Right grid: Assigned Menu:
                  - To assign or unassign, we can drag and drop records or select records and click the Forward Backward button.

            + Assign Function tab: The same behavior with menu tab to assign function as children for working menu


       1.3. Delete Menu:

      To delete the menu.
  1. Click on a row on the grid to select the menu that you want to delete and click the delete button to open a pop-up.
  1. Click Yes if you want to delete Menu.

2. Menu grid:

Show all menu of Inventory. We can expand or collapse menu.
