How to implement file viewer in WebClient using Office Web Viewer

How to implement file viewer in WebClient using Office Web Viewer

Reference

IMPORTANT:
The file (Excel spreadsheet, Word document, and PowerPoint presentation) need to be accessible via the internet without using any port number.

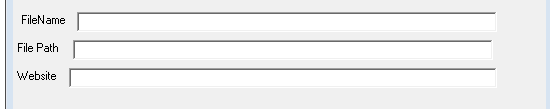

  1. Create a url field and set the control name of the field to fileURL.


  2. Create a button to trigger the file viewer event. Set the control name of the button to ViewFile:MainArea:template=FileViewer:default


    FileViewer.ctrl will be attached in this article and it should be placed in your custom template Java project.

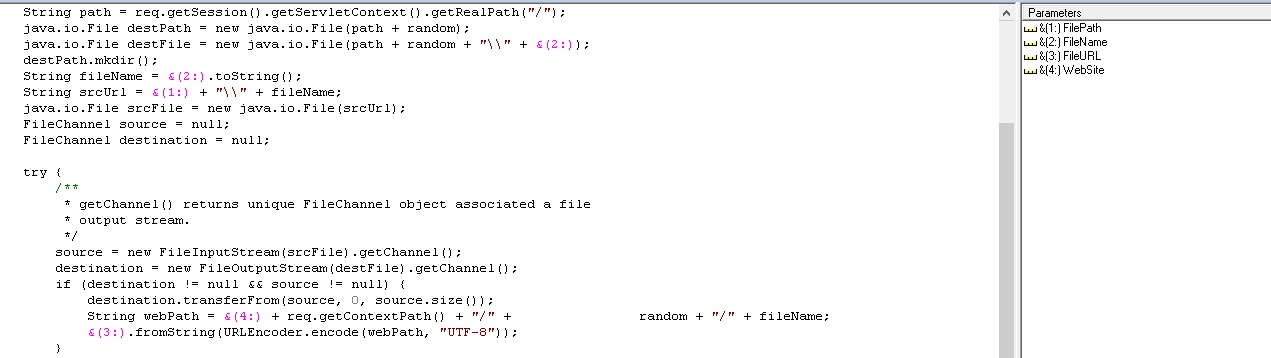

  3. Call an API that contains the following code:
    // Generate a random number from 1 to 90
    // Create a directory in the web context based on the generated random number
    // Copy the file from your source directory to the newly created directory
    // Create the url to access the new file
    import java.io.File;
    import java.io.FileInputStream;
    import java.io.FileOutputStream;
    import java.io.IOException;
    import java.io.FileNotFoundException;

    import java.net.URLEncoder;

    import java.nio.channels.FileChannel;
    {
        int random = (int)(Math.random() * 90 + 1);
        com.adcaustin.webclient.IWebApp webApp = (com.adcaustin.webclient.IWebApp)(Object) fnc.getApp();
        javax.servlet.http.HttpServletRequest req = (javax.servlet.http.HttpServletRequest) webApp.getFromUserStorage("javax.servlet.http.HttpServletRequest");
        String path = req.getSession().getServletContext().getRealPath("/");
        java.io.File destPath = new java.io.File(path + random);
        java.io.File destFile = new java.io.File(path + random + "\\" + &(2:));
        destPath.mkdir();
        String fileName = &(2:).toString();
        String srcUrl = &(1:) + "\\" + fileName;
        java.io.File srcFile = new java.io.File(srcUrl);
        FileChannel source = null;
        FileChannel destination = null;

        try {
            /**
             * getChannel() returns unique FileChannel object associated a file
             * output stream.
             */
            source = new FileInputStream(srcFile).getChannel();
            destination = new FileOutputStream(destFile).getChannel();
            if (destination != null && source != null) {
                destination.transferFrom(source, 0, source.size());
                String webPath = "http://www.mywebsite.com" + req.getContextPath() + "/" +                random + "/" + fileName;
                &(3:).fromString(URLEncoder.encode(webPath, "UTF-8"));
            }
        } catch (FileNotFoundException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } finally {
            if (source != null) {
                try {
                    source.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
            if (destination != null) {
                try {
                    destination.close();
                } catch (IOException e) {
                    e.printStackTrace();
                }
            }
        }
    }

    Parameters:
    &(1:): FilePath (this field will contain the path where the documents are located)
    &(2:): FileName (
    this field will contain the name of the document to open)
    &(3:): FileURL (
    this field will contain the URL processed by the source code)

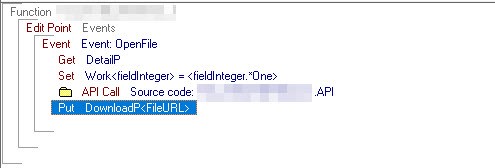

  4. Do a put to set the value of the URL.

  5. Optional: you can create a new API to delete the folders and files that are older than certain number of days.

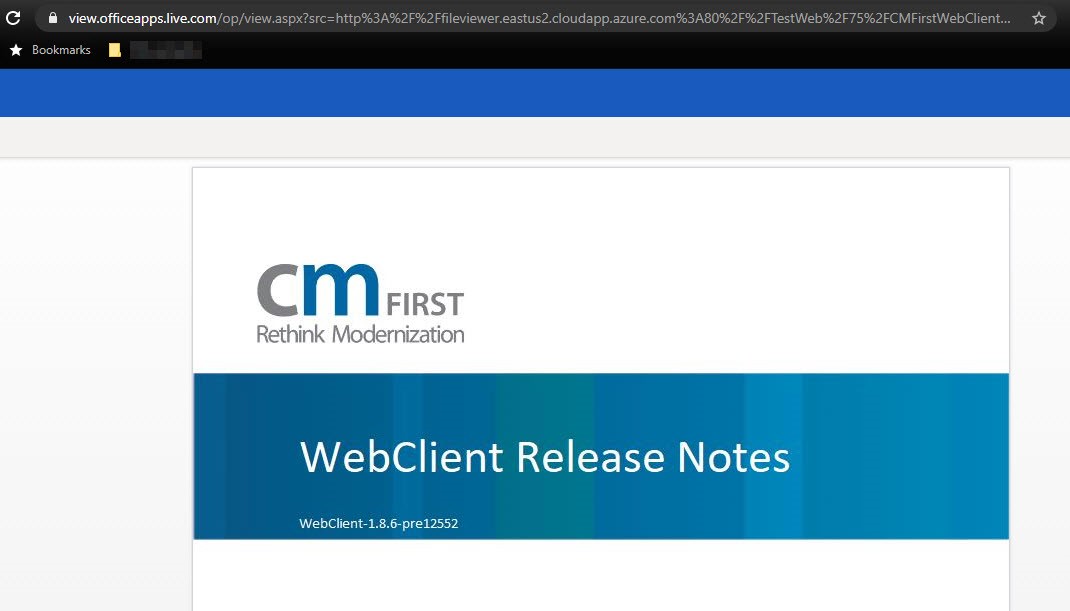

  6. Test your function.
