Edit Grid

Edit Grid


Edit Grid can be found in the current version of HSync templates.

To implement add the triple:

MyEntity ENT is a ENT Ability.EditList

By default all fields are editable. To prevent a field from being edited, add it to the local variable 'NonEditable' in TemplateGeneration.EvaluateDataAttribute.

Plex

For this example we will use a test entity, Vendeur Tablette, that inherits from edit grid:

Gestion Tablette Offline.Vendeur Tablette is a ENT Ability.EditList.

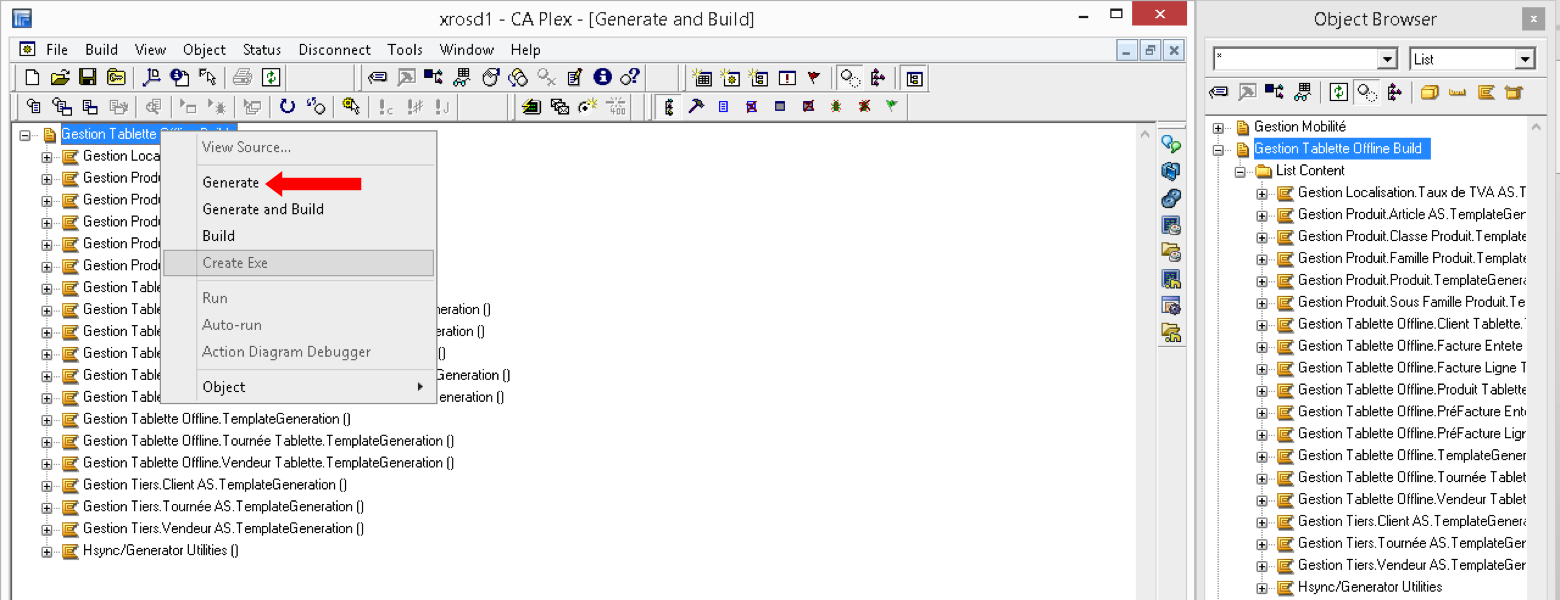

Generate Changes.

On the model set up an offline tablette build list that contains all the template generation functions for all the entities of the application.


After generating the offline tablette build list generate the Gestion Tablette Offline Server:


Eclipse

Now go to Eclipse.

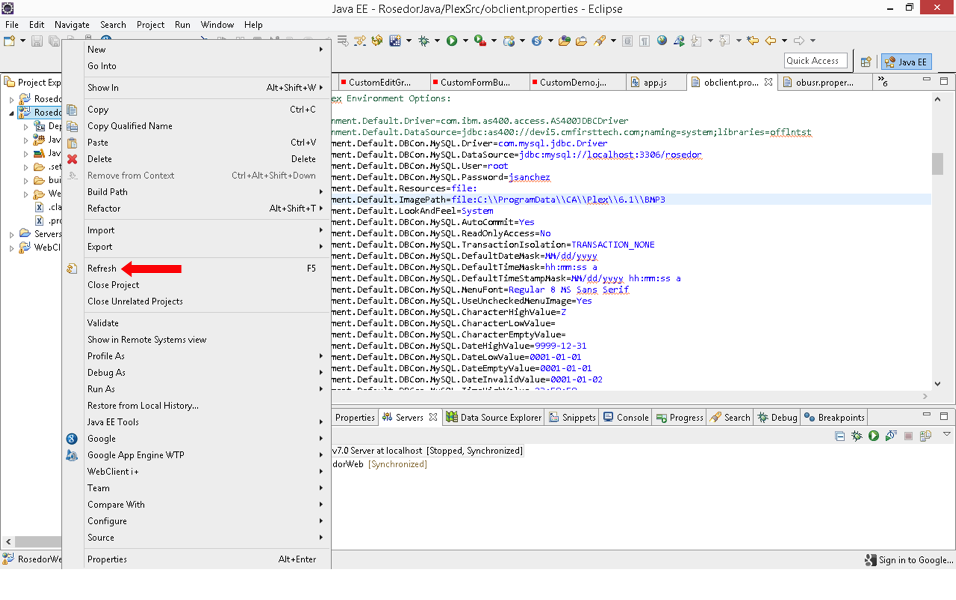

To import all the generated functions right click and refresh the java project.

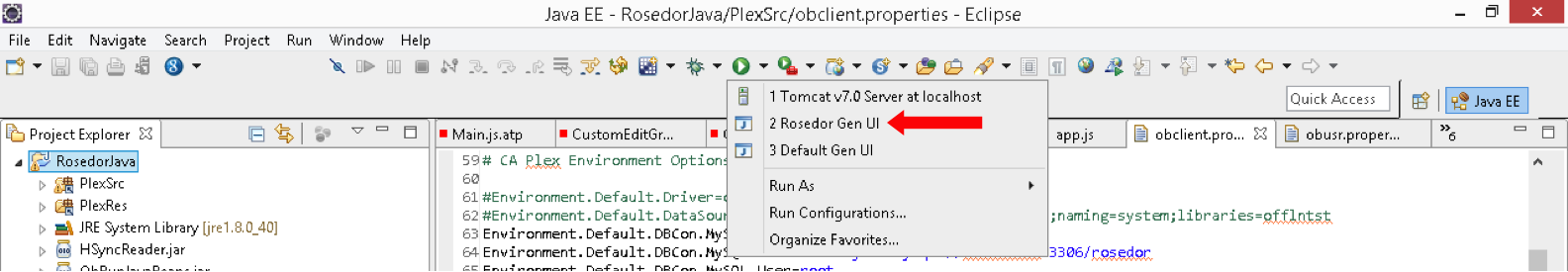

Then run the Application Generator.


When the application is running do the following:

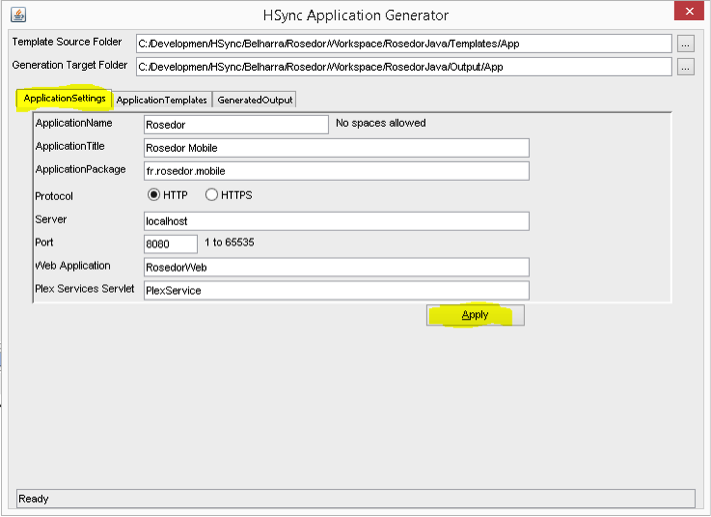

  1. Click on the Application Settings tab then click on apply.

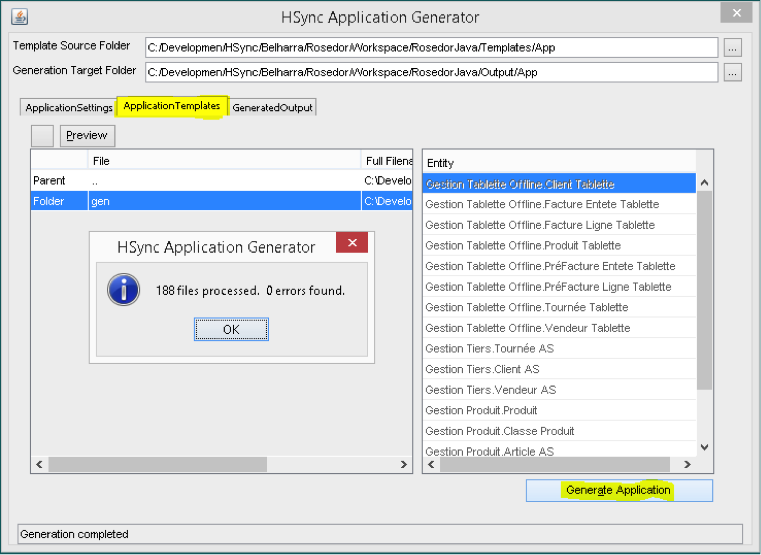

  2. Click on Application Template, select Gen Folder, and Generate Application. Wait for the message that all was generated.

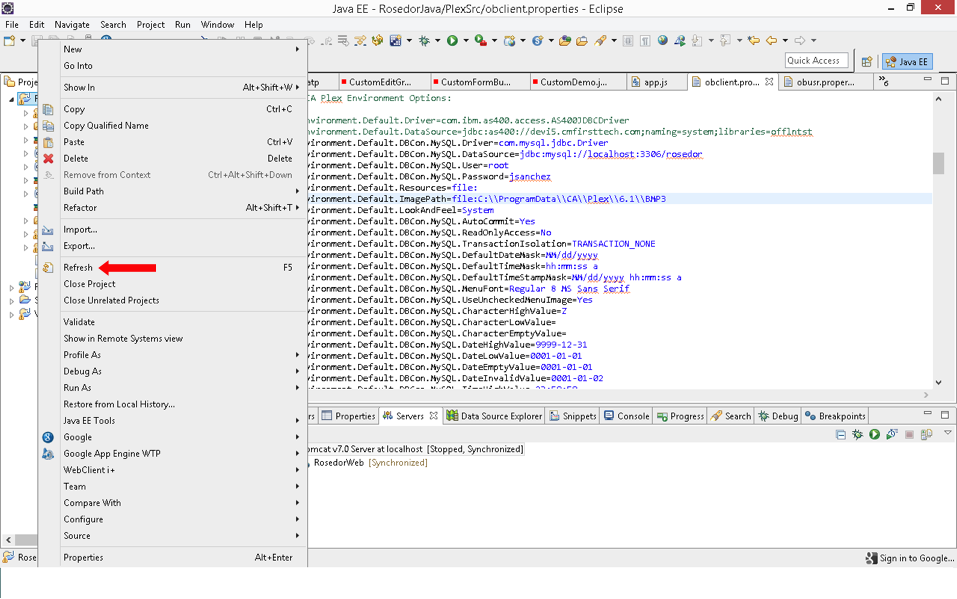

Now right click and refresh the web project.

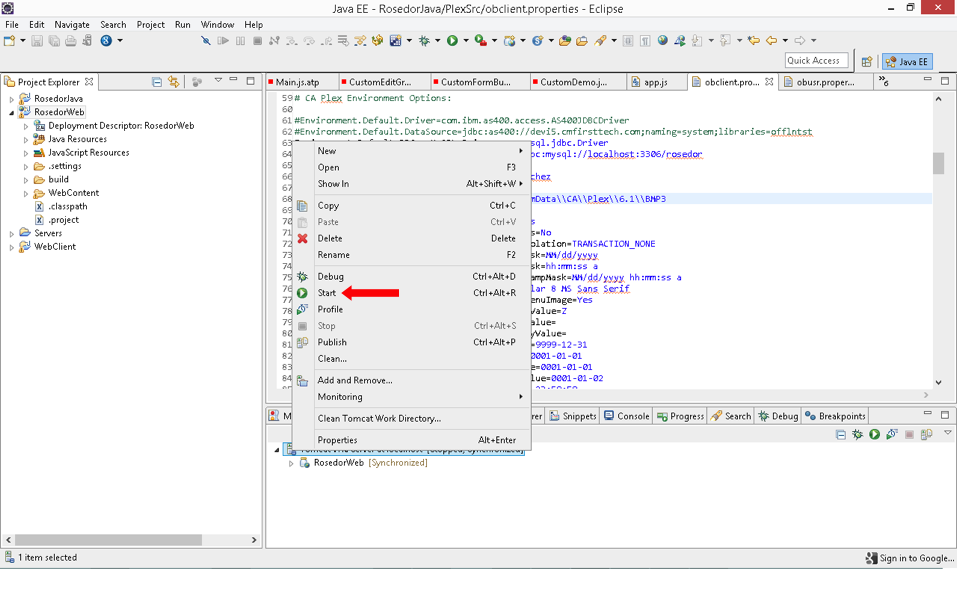

Run Tomcat server.

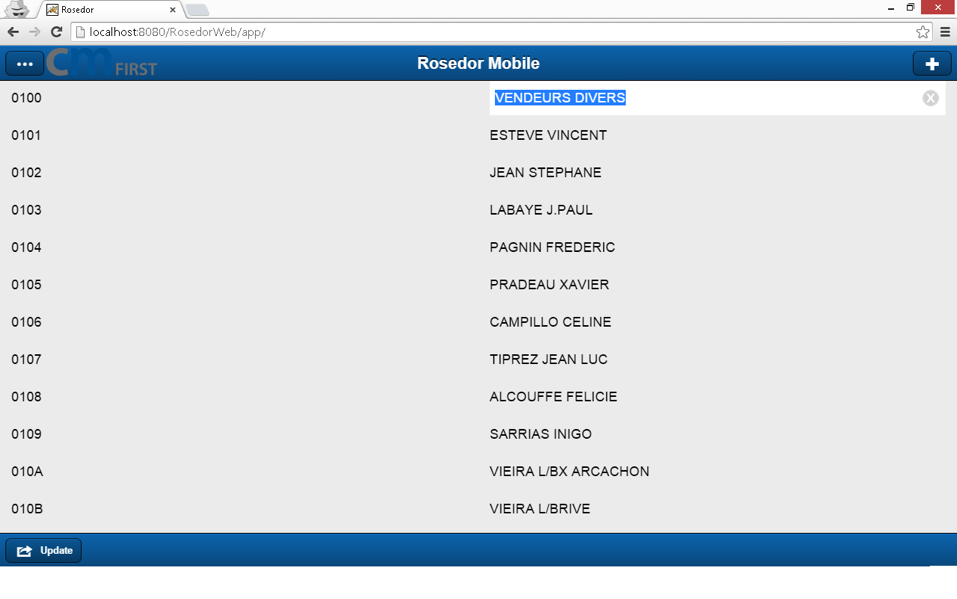

Test Changes
