Calling WebClient from an External Application

Calling WebClient from an External Application

This section demonstrates how to pass a parameter to WebClient function. The following example is based on wxpcourse60 model calling the function WXwF, which prompts the user to insert an item record.

The first step is to create a URL which calls the insert item function, without parameters. To accomplish this, open file and add the following property.

Now, the servlet will respond to the URL /WebClientServlet/InsertItem by calling the function WXPCOURSE60.WXwF as the WebClient entry point. However, it does not yet allow parameters to be passed.

To pass parameters in, a custom servlet needs to be created. Open J2EE perspective. Right-click on web project → Select New → Select Servlet.

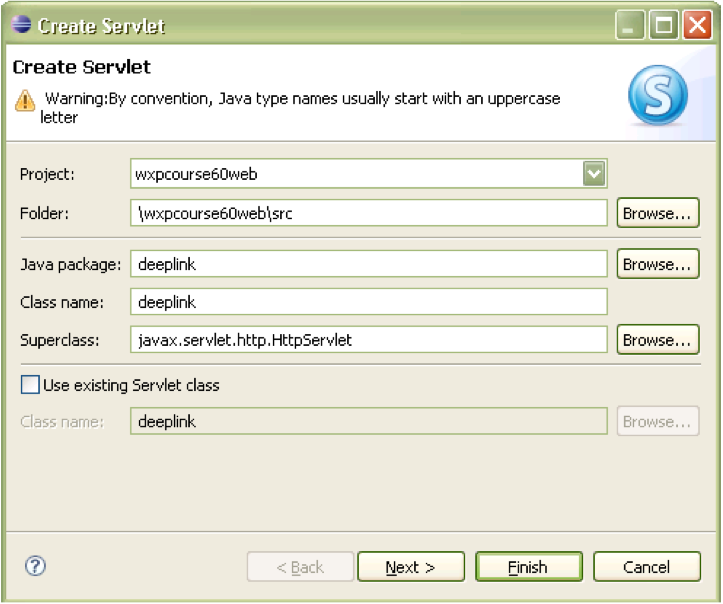

Enter deeplink as the Java package and Class name. For the servlet mapping, specify InsertItem. Click Finish.

In the WebClient documentation folder, there exists a sample custom servlet, called, which will help you create a servlet that sends parameters to a Plex function. Copy and paste the code from to the newly created servlet. Change the package name to deeplink.

Change the class name to deeplink.

The parameters are passed to WebClient using an XML format. Locate the variable plexXML in the source code; this contains the XML data that is sent. Modify the input variable name and field name to match those expected by the WXwF function.

final String plexXML = " <FieldName=\"ItemID\">"+ encodeToXML(myVariable) + final String plexXML = "<PlexFunction
<InputVariables Name=\"Input\"><FieldName=\"ItemID\">"+
encodeToXML(myVariable) +

Modify webClient URL from final String webclientURL =
"/webclient/test"; to final String webclientURL =

Now the InsertItem servlet will forward its requests to the WebClient servlet. Save changes.
The last change that needs to be made is the servlet mapping. It needs to have the characters /* at the end to match against any parameter that is passed in the URL. Open web.xml and change deeplink servlet mapping to


And WebClientServletservlet mapping to


The web.xml file should look like below.

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="
xsi:schemaLocation=" id="WebApp_ID"
Calling WebClient from an External Application
C M W e b C l i e n t U s e r M a n u a l P a g e 49 | 93

Save changes.
Build the web project and publish to the server.
To call the function, open a web browser and enter the following URL. http://localhost:8080/wxpcourse60web/InsertItem/001
URL format:
